Dee Shackle

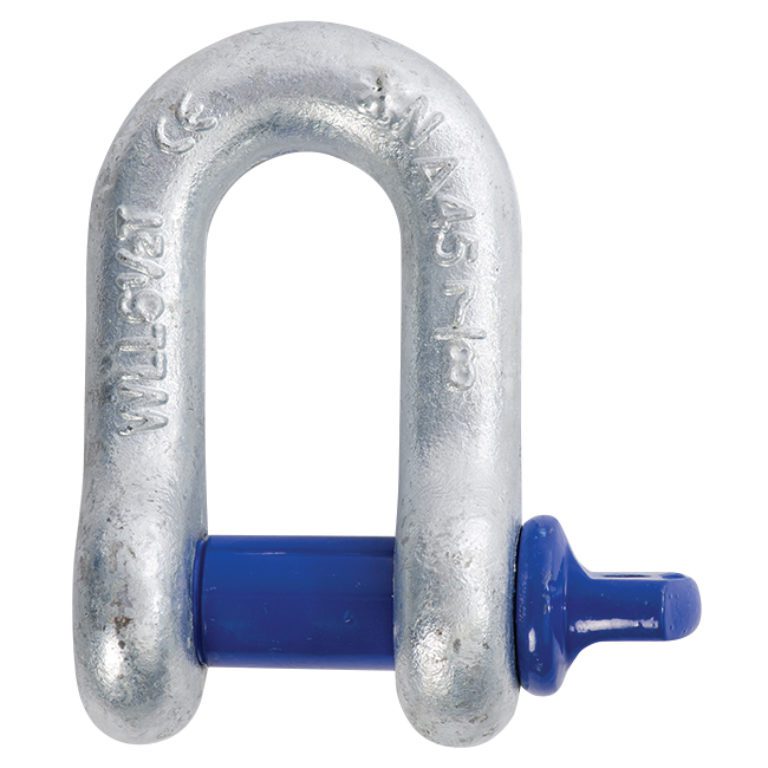

Screw Pin Alloy Dee Shackle

The Screw Pin Alloy Dee Shackle is a versatile and widely used rigging component, designed for applications where a narrow, D-shaped profile is required. Its compact form makes it ideal for connecting to a single point of attachment such as a hook, eye bolt, or lifting lug. The screw pin provides a quick and secure closure, allowing for fast rigging and de-rigging on site without the need for tools.

Key Features

• Alloy steel construction for high strength and durability
• Narrow dee profile for single-point attachment and in-line loading
• Screw pin closure for quick, tool-free assembly and disassembly
• Fully forged and heat-treated for long service life
• Proof tested and supplied with test certificate
• WLL clearly stamped on the body for safe identification
• Compliant with EN 13889 and relevant lifting standards

Applications

• Connecting lifting accessories to hooks, eye bolts, and lifting lugs
• Single-leg sling and chain assemblies
• General lifting and rigging operations
• Construction, engineering, and manufacturing
• Offshore, marine, and subsea lifting
• Temporary rigging where frequent assembly and disassembly is required

Supplied with a test certificate. Always mouse or secure the screw pin before lifting. Inspect before each use and never exceed the Working Load Limit (WLL).
