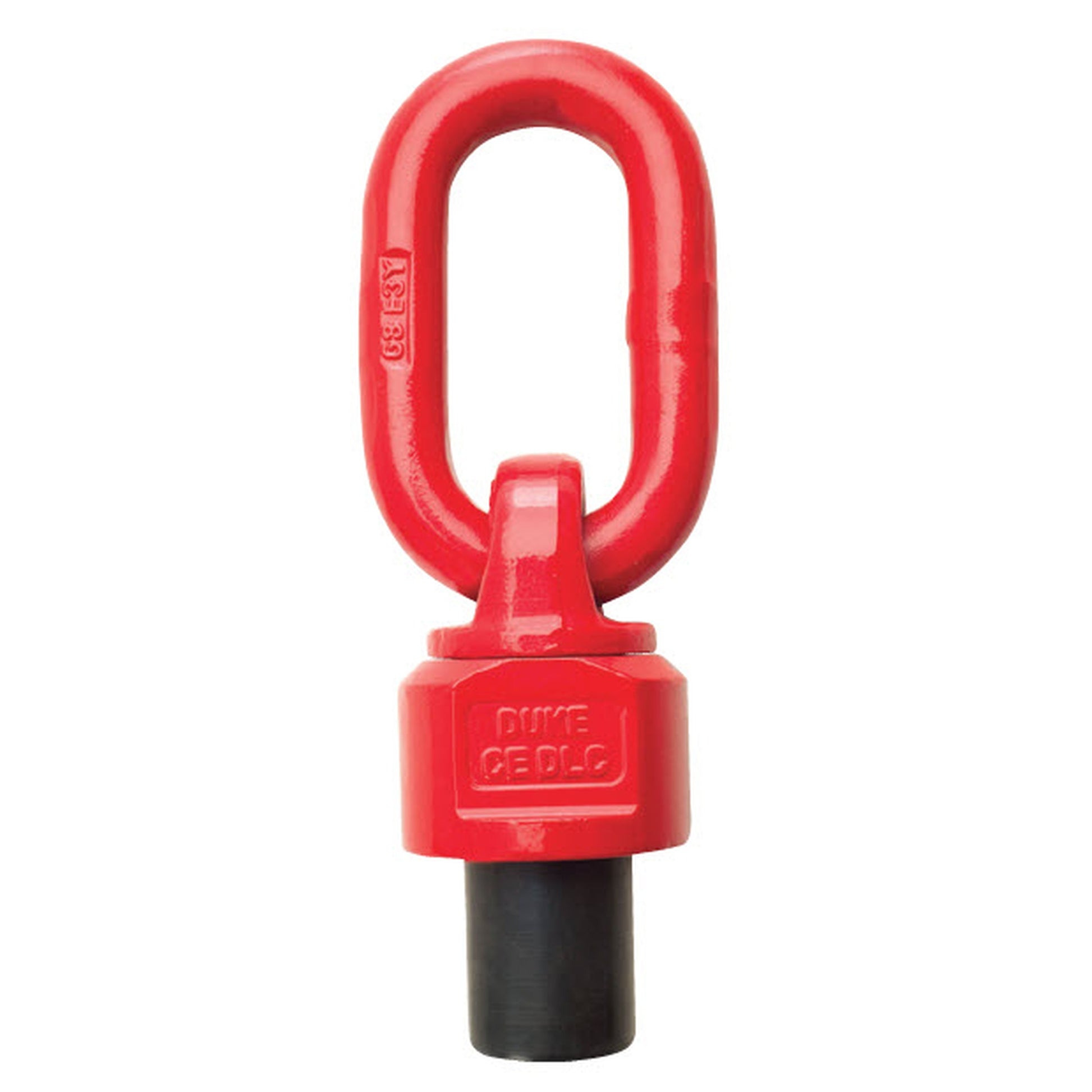

Swivel Lifting Eyebolt with Ring

Swivel Lifting Eyebolt with Ring

The Swivel Lifting Eyebolt with Ring is a versatile and indispensable lifting point for a wide range of industrial applications. Unlike a fixed eyebolt, the swivel design allows the ring to rotate 360° and articulate under angular loads, significantly reducing the risk of side loading and bolt bending. Simply thread it into your machinery, equipment, or fabrication and you have a safe, reliable lifting point ready to go.

Key Features

• Swivel ring design allows 360° rotation and angular load capability
• Significantly reduces risk of side loading compared to fixed eyebolts
• Threaded shank for easy installation into tapped holes
• Forged steel construction for high strength and durability
• Proof tested and supplied with test certificate
• WLL clearly marked for safe identification
• Available in metric thread sizes to suit a wide range of applications
• Suitable for use with slings, shackles, and other lifting accessories

Applications

• Providing a safe lifting point on machinery and equipment
• Steel fabrication and structural lifting
• Engineering and manufacturing environments
• Construction and installation work
• Offshore and marine applications
• Anywhere a reliable, angular-load-capable lifting point is required

Supplied with a test certificate. Always inspect before use, ensure correct thread engagement, and never exceed the Working Load Limit (WLL).
