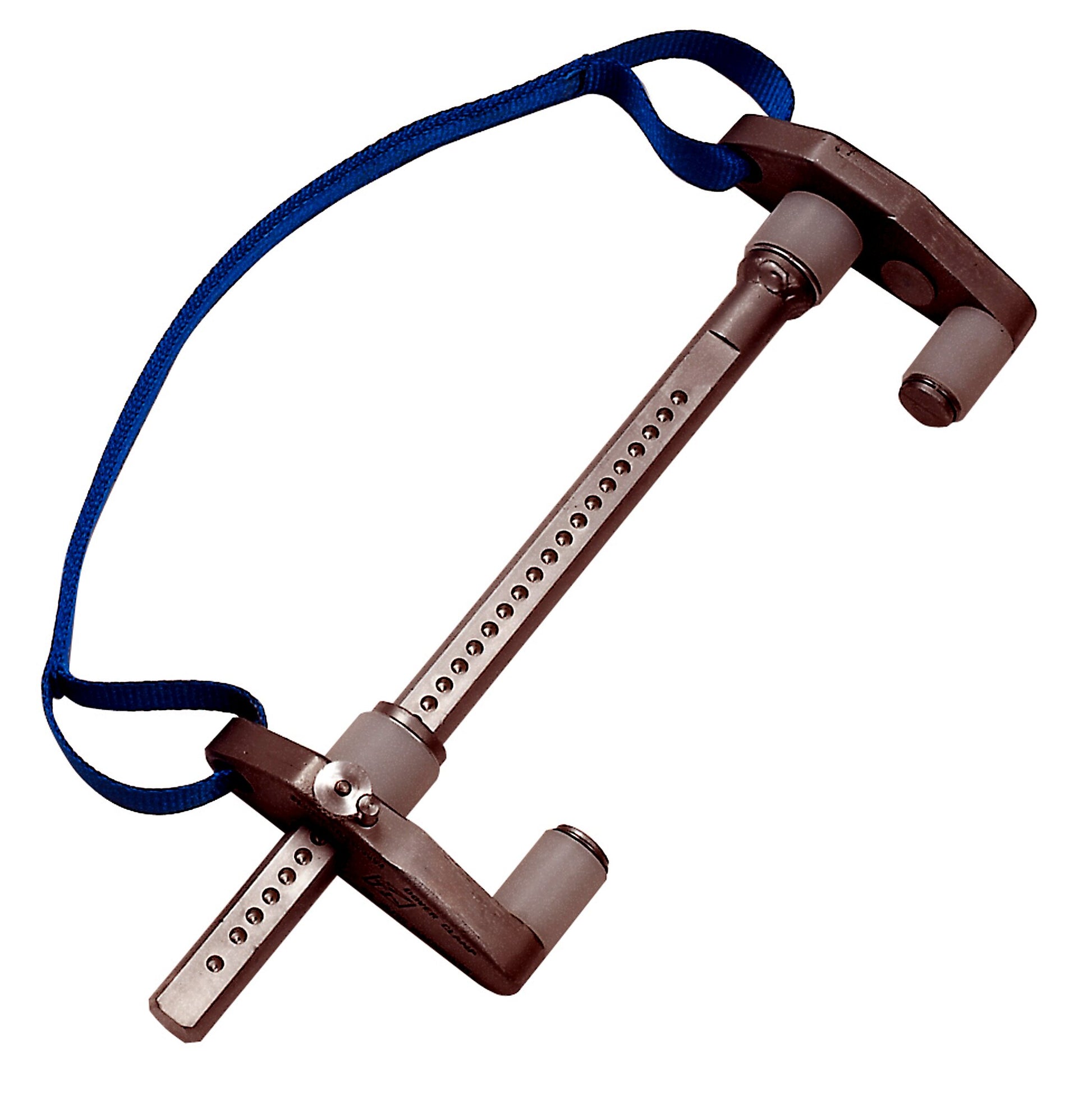

Roll Clamp

The Roll Clamp delivers versatile anchoring solutions for workers on metal structures requiring personal fall protection with enhanced movement freedom across I- and H-beam installations. This anchoring device accommodates energy-absorbing lanyards and Self Retracting Lifelines like Blocfor range through polyamide webbing connection whilst providing optimum safety against falls from height. The system enables installation on upper or lower beam flanges depending on whether users move on the latching beam or below the latching beam structure.

Featuring fixed aluminium casting jaw welded to aluminium adjustment rod with movable aluminium sliding casting jaw for automatic locking capability, the system accommodates variable beam widths through sliding mechanism. Available in M configuration for 90 - 400 mm beam widths (1.6 kg) and L configuration for 200 - 615 mm beam widths (2.1 kg), both utilise aluminium construction for lightweight portability. CE EN 795 B:2012 certification ensures regulatory compliance with 150 kg maximum operating load capacity whilst polyamide webbing provides secure operator connection interface.

Industrial applications include construction sites, manufacturing facilities, and maintenance operations on I- and H-beam structures requiring mobile fall protection with unrestricted movement capability. The adjustable jaw mechanism enables secure attachment across varying beam flange widths whilst maintaining lightweight portability for repositioning. Essential for workers requiring reliable beam-mounted anchoring with superior mobility, regulatory compliance, and versatile installation options on upper or lower flanges across diverse I- and H-beam configurations with automatic locking capability.
